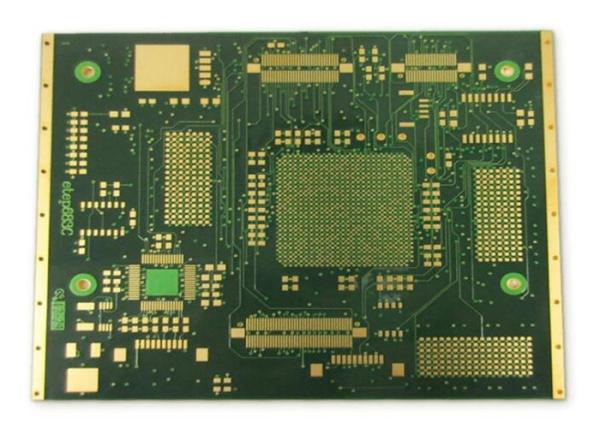

    ROHS 4OZ HDI PCB Board Motherboard Printed Circuit Board

    Fr4 Circuit Board Motherboard HF Multilayer ROHS HDI PCB Board


    HDI PCB Board Introduction


    HDI PCB Board is the High-Density Interconnect (HDI) Printed Circuit Boards. There is little space between the PCB components, making the board space smaller, at the same time the board functionally isn’t affected. That is, a PCB with about 120 – 160 pins per square inch is an HDI PCB. HDI boards technologies, grow fastest in PCBs, are now available for my partners. HDI Board contains blind and buried vias and often contain microvias of 0.006 or less in diameter. HDI board has higher circuitry density than traditional circuit boards.


    PCB CAPABILITIES

    FACTORY CAPABILITIES
    No.Items20192020
    1HDI CapabilitiesHDI ELIC (4+2+4)HDI ELIC(5+2+5)
    2Max layer count32L36L
    3Board ThicknessCore thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mmCore thickness 0.05mm-1.5mm ,Fineshed board thickness 0.3-3.5mm
    4Min.Hole SizeLaser 0.075mmLaser 0.05mm
    Mechnical 0.15mmMechnical 0.15mm
    5Min Line Width/Space0.035mm/0.035mm0.030mm/0.030mm
    6Copper Thickness1/3oz-4oz1/3oz-6oz
    7Size Max Panel size700x610mm700x610mm
    8Registration Accuracy+/-0.05mm+/-0.05mm
    9Routing Accuracy+/-0.075mm+/-0.05mm
    10Min.BGA PAD0.15mm0.125mm
    11Max Aspect Ratio10:110:1
    12Bow and Twist0.50%0.50%
    13Impedance Control Tolerance+/-8%+/-5%
    14Daily Output3,000m2 (Max capacity of equipment)4,000m2 (Max capacity of equipment)
    15Surface FinishingENEPING /ENIG /HASL /FINGER GOLD/IMMERSION TIN/SELECTIVE THICK GOLD
    16Raw MaterialFR-4/Normal Tg/High Tg/Low Dk/HF FR4/PTEE/PI

    The types of HDI PCB


    1.through vias from surface to surface,
    2.with buried vias and through vias,
    3.two or more HDI layer with through vias,
    4.passive substrate with no electrical connection,
    5.coreless construction using layer pairs
    6.alternate constructions of coreless constructions using layer pairs.


    ROHS 4OZ HDI PCB Board Motherboard Printed Circuit Board

    Work flow for HDI


    Board Cut - Inner Wet film -DES - AOI - Brown Oxido - Outer Layer Press - Out Layer Lamination - X-RAY & Rounting - Copper reduce & brown oxide - Laser Drilling - Drilling - Desmear PTH - Panel plating - Outer Layer dry film - Etching - AOI- Impedance Testing - S/M Pluged hole - Solder Mask - Component Mark - Impedance testing - Immersion Gold -V-cut - Routing - Electrical Test - FQC - FQA -Package -Shipment


    ROHS 4OZ HDI PCB Board Motherboard Printed Circuit Board

    PCB Assembly Process


    ROHS 4OZ HDI PCB Board Motherboard Printed Circuit Board


    Similar products


    ROHS 4OZ HDI PCB Board Motherboard Printed Circuit Board

    ROHS 4OZ HDI PCB Board Motherboard Printed Circuit Board


    Delivery Time


    Product TypeQtyNormal lead timeQuick-turn lead time
    SMT+DIP1-501WD-2WD8H
    SMT+DIP51-2002WD-3WD1.5WD
    SMT+DIP201-20003WD-4WD2WD
    SMT+DIP≥20014WD-5WD3WD
    PCBA(2-4Layer)1-502.5WD-3.5WD1WD
    PCBA(2-4Layer)51-20005WD-6WD2.5WD
    PCBA(2-4Layer)≥2001≥7WD5WD
    PCBA(6-10Layer)1-503WD-4WD2.5WD
    PCBA(6-10Layer)51-20007WD-8WD6WD
    PCBA(10-HDILayer)1-507WD-9WD5WD
    PCBA(10-HDILayer)51-20009WD-11WD7WD

    HDI PCB Board Application Field


    Our products are widely used in communication equipment, industrial control, consumer electronics, medical equipment, aerospace, light-emitting diode lighting, automotive electronics etc.
